Ambient RF Energy Harvesting for Infinite-Life Security Tags: How It Works & Why It’s the Future

Imagine never having to replace or recharge the batteries in security tags — ever again. In an era where smart devices are everywhere and retail operations are scaling globally, the need for reliable, maintenance-free security solutions has never been more urgent. This is where ambient RF energy harvesting for infinite-life security tags steps into the spotlight.

At its core, ambient RF (radio frequency) energy harvesting is a technique that allows devices to capture and convert stray radio waves from the environment into usable electricity. These invisible waves — emitted constantly by Wi-Fi routers, cellular towers, Bluetooth devices, and other transmitters — can power tiny circuits, including those embedded in security tags used in anti-theft and asset protection systems.

Traditionally, security tags fall into two categories: passive (like standard RFID tags that need a nearby scanner to activate) or battery-powered active tags. But both come with limitations. Passive tags have short ranges and limited functionality, while active tags require frequent battery maintenance or replacements, especially in large-scale deployments. In contrast, infinite-life security tags powered by ambient RF eliminate both constraints, offering a self-sustaining, batteryless solution that operates perpetually — provided there’s ambient RF energy in the environment.

💡 Did you know? The average retail store can contain over 10,000 security tags. If each tag’s battery lasts 2–3 years, that’s thousands of battery replacements — a major labor and cost burden.

The implications of ambient RF energy harvesting extend far beyond retail. From logistics and supply chain monitoring to industrial security, the ability to deploy self-powered security tags at scale opens up new avenues for secure, efficient, and low-maintenance operations.

In this comprehensive guide, we’ll explore:

How ambient RF energy harvesting works
The architecture of infinite-life security tags
Technical challenges and solutions
Use cases, performance metrics, and deployment strategies
The future of security tagging in a wireless world

Whether you’re an engineer, retail executive, IoT developer, or simply tech-curious, this article will provide a deep, practical understanding of this transformative technology.

2. Background: Security Tags & Electronic Article Surveillance (EAS)

To fully appreciate the innovation behind ambient RF energy harvesting for infinite-life security tags, it’s important to understand the foundation: what security tags are, how they’re used, and where the current limitations lie.

2.1 What Are Security Tags (EAS Tags)?

Security tags, often referred to as Electronic Article Surveillance (EAS) tags, are small electronic devices attached to merchandise, assets, or packages to prevent theft or unauthorized removal. These tags are widely used in retail stores, libraries, warehouses, and even in supply chains.

There are several types of EAS tags, each operating on different principles:

Type of Security Tag	Technology	Typical Use Case
RF Tags	Radio Frequency (8.2 MHz)	Retail anti-theft systems
AM Tags	Acousto-Magnetic	High-end merchandise, pharmacies
EM Tags	Electromagnetic	Libraries, bookstores
RFID Tags	Radio Frequency Identification (13.56 MHz or UHF)	Asset tracking, logistics

Each of these tags interacts with a gate or antenna system placed near store exits. If someone attempts to remove a tagged item without proper deactivation, the system triggers an alarm.

2.2 RFID Tags: Passive, Semi-Passive, and Active

When we discuss RF energy harvesting, the conversation naturally extends to RFID (Radio Frequency Identification) technology, which powers many modern security tags.

Here’s a breakdown of RFID tag types:

Passive RFID Tags
These have no internal power source. They rely entirely on the energy emitted by a reader to power their circuits and reflect a signal back. They’re inexpensive but have short range and limited processing power.
Semi-Passive RFID (Battery-Assisted Passive)
These tags contain a small battery used to power the internal circuitry, but communication still happens through backscatter like passive tags. They offer better performance but still require battery replacement.
Active RFID Tags
These have their own transmitter and battery. They can broadcast signals autonomously, over long ranges — but at a high cost and limited battery life.

📌 Problem: Batteries degrade. Even the best batteries wear out in 2–10 years. In systems with millions of tags, replacing batteries becomes an operational nightmare.

2.3 The Role of Security Tags in Retail and Logistics

Security tags are not just about theft prevention. In today’s hyper-connected world, they’re part of a larger system of inventory control, supply chain visibility, and loss prevention. The ability to monitor and secure goods as they move through manufacturing, shipping, warehousing, and retail shelves is essential to operational efficiency.

Key functions of security tags in modern use cases:

Anti-theft and product loss prevention
Automated inventory management
Tracking high-value items in real-time
Tamper detection and movement logging

But as these functions expand, so do the demands. Businesses want:

Longer-lasting tags
Zero maintenance
Smaller size and weight
Lower cost per unit

This is where ambient RF energy harvesting offers a compelling solution — powering tags indefinitely without the need for batteries.

✅ Takeaway: The limitations of conventional security tags — especially battery dependence — create both logistical and financial challenges at scale. Ambient RF energy harvesting could be the key to solving this.

3. Fundamentals of Ambient RF Energy Harvesting

3.1 What Is Ambient RF Energy?

Ambient RF (Radio Frequency) energy refers to electromagnetic waves constantly surrounding us, emitted by wireless communication systems. These invisible waves are all around us — produced by:

Wi-Fi routers (2.4 GHz and 5 GHz)

Cell towers (800 MHz – 2.6 GHz)

TV and radio broadcast towers

Bluetooth and Zigbee devices

Microwave ovens (interference at 2.45 GHz)

IoT networks (LoRa, NB-IoT)

🛰️ Fact: A typical urban environment contains RF signals in the range of -20 to -60 dBm (equivalent to 10 to 0.000001 microwatts of power per square centimeter).

Unlike dedicated wireless power transmission (which uses a high-powered source), ambient RF energy harvesting taps into existing transmissions — no new infrastructure is needed.

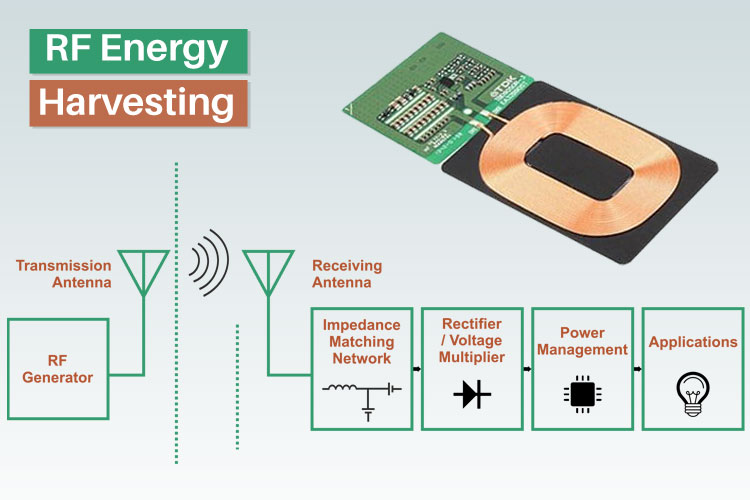

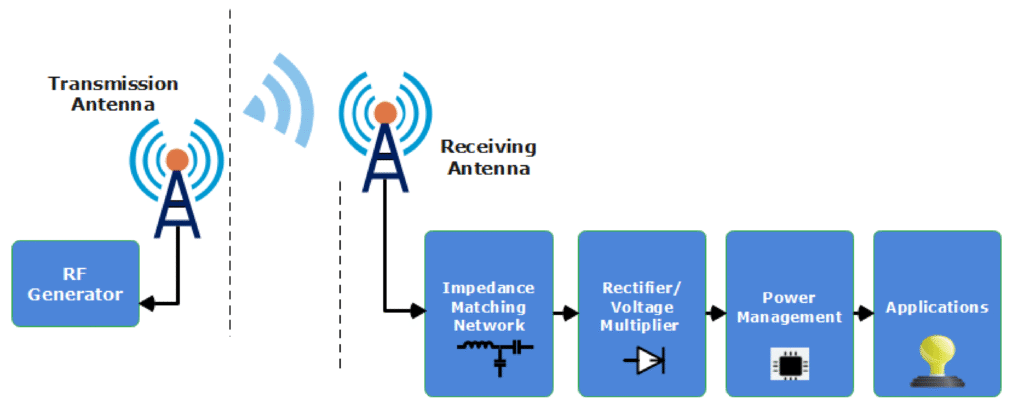

3.2 How RF Energy Harvesting Works

To harvest ambient RF energy and convert it into usable electrical power, we need an electronic system typically composed of:

✅ 1. Antenna

Captures RF signals from the environment.

Needs to be tuned to the frequencies most prevalent in the operating environment (e.g., 2.4 GHz for Wi-Fi).

Can be omnidirectional or directional, depending on application.

✅ 2. Matching Network

Ensures maximum power transfer between the antenna and the rectifier.

Minimizes signal reflection and impedance mismatch.

✅ 3. Rectifier Circuit (Rectenna)

Converts alternating current (AC) RF signals into direct current (DC) using Schottky diodes or CMOS rectifiers.

Efficient rectification is crucial — low-voltage RF signals can be easily lost in the conversion process.

✅ 4. Energy Management Unit (PMU)

Stores and regulates harvested energy using:

Supercapacitors

Thin-film batteries

Energy-aware regulators

Decides when and how much power to deliver to the load (the security tag logic).

✅ 5. Load (Tag Logic + Communication)

Powers the tag’s embedded circuits, memory, and transmitter or backscatter module.

Executes periodic tasks like identity broadcasting or tamper detection.

3.3 Real-World Power Levels & Harvesting Efficiency

RF energy in the ambient environment is typically extremely weak. That means systems must operate on microwatts or even nanowatts of available energy.

Source Typical Frequency Power Density (µW/cm²) Harvestable?
Wi-Fi Router (2m away) 2.4 / 5 GHz 0.01 – 0.1 ✅ Yes
Cell Tower (100m away) 800 MHz – 2.6 GHz 0.0001 – 0.01 ⚠️ Marginal
TV Tower (10 km away) 470 MHz – 700 MHz ~0.00001 ❌ Very Low
RFID Reader (nearby) 860 – 960 MHz 0.1 – 10 ✅ Ideal

⚡ Efficiency Tip: Most energy harvesting circuits achieve 10% to 60% efficiency, depending on input power and design. Using multi-band rectifiers or metamaterial antennas can improve capture rates significantly.

3.4 Design Tradeoffs and Technical Challenges

Building a practical ambient RF energy harvesting system for infinite-life security tags involves solving multiple engineering tradeoffs:

⚙️ 1. Power Budgeting

Tags must operate within tight energy limits (e.g., <100 µW for a full cycle).

Energy-intensive operations (like wireless transmissions) must be scheduled carefully.

⚙️ 2. Size and Cost Constraints

Security tags must be small, lightweight, and cheap (typically <$1 per tag).

This limits the size of antennas and complexity of circuitry.

⚙️ 3. Frequency Variability

Urban environments may have fluctuating RF conditions.

Harvesters must adapt to multi-frequency inputs (dual-band or broadband harvesting).

⚙️ 4. Storage and Regulation

Sudden surges in harvested power can overload circuits.

Too little energy leads to incomplete operations or missed transmissions.

⚙️ 5. Duty Cycling and Sleep Modes

Tags often operate on a low-duty cycle (e.g., wake every 5 seconds, transmit for 10 ms).

Between operations, the system enters deep sleep to conserve energy.

3.5 Innovations & Cutting-Edge Approaches

Research teams and startups are pushing boundaries with new technologies:

🔬 1. Metasurface Antennas

Special materials with engineered surfaces to amplify RF capture from weak signals.

Can improve harvesting efficiency by 2–3× compared to conventional antennas.

🌀 2. Spintronic Nano-Generators

Convert broadband microwave energy directly into usable electricity.

Still experimental but promising for ultra-small devices.

🌐 3. Multi-Band & Nonlinear Rectifiers

Exploit harmonics and multi-frequency signals to maximize capture.

Allow devices to harvest energy from Wi-Fi + cellular + IoT sources simultaneously.

⚡ 4. Hybrid Energy Harvesting

Combine RF harvesting with solar, thermal, or kinetic energy for more consistent power.

Especially useful in environments with limited RF exposure.

🧠 Case Study: A 2023 project by researchers at KAIST demonstrated a battery-free tag that harvested ambient RF at 900 MHz and 2.4 GHz, storing energy in a micro-supercapacitor and transmitting an ID signal every 6 seconds — all without external power.

✅ Summary: Why This Matters for Infinite-Life Tags

For infinite-life security tags to become viable, they must:

Harvest enough energy from the environment to operate consistently.

Store and regulate power effectively.

Communicate using ultra-low-power techniques like backscatter.

Be small and cheap enough for large-scale deployment.

Ambient RF energy harvesting meets all of these requirements — but success depends on smart, efficient design across the entire system.

4. Applying Ambient RF Energy Harvesting to Infinite-Life Security Tags

While the theory of RF energy harvesting is promising, applying it to real-world security tags presents unique engineering challenges. These tags must be ultra-low-power, extremely compact, and cost-effective — all while maintaining security and reliability. In this section, we’ll unpack how ambient RF energy harvesting is tailored for security tags and what innovations are pushing this field forward.

4.1 What Makes Security Tags Unique in the IoT Landscape?

Most IoT devices can afford batteries, frequent maintenance, or access to wall power. Security tags, however, are different:

Security Tag Requirements Explanation
Ultra-low power consumption Must operate on microwatts or less, ideally harvesting enough to run indefinitely.
Tiny form factor Must be small and lightweight for attachment to goods or packaging.
Cost-sensitive (~$0.10–$1 per tag) High-volume deployment in retail and logistics environments demands low cost.
Security & tamper resistance Must detect unauthorized removal or tampering with high reliability.
No maintenance or battery changes Replacing batteries in millions of tags is not feasible.

These constraints make ambient RF energy harvesting not just a bonus — but a requirement for the next generation of tags.

4.2 Architecture of an Infinite-Life RF-Powered Security Tag

A typical infinite-life security tag includes the following components, integrated into a tiny form factor (e.g., credit card size or smaller):

🧩 System Overview:
[ Antenna ] → [ RF Rectifier ] → [ Power Management ] → [ Microcontroller + Security Logic ] → [ Backscatter Module / RF Modulator ]
Let’s break this down:

Antenna – Picks up ambient RF from the environment (e.g., Wi-Fi, cell signals).

RF Rectifier – Converts captured AC signals to DC voltage.

Power Management Unit (PMU) – Stores energy in a capacitor or thin-film battery, manages voltage thresholds.

Microcontroller – Executes secure identity broadcasting, tamper detection, and communication logic.

Backscatter/Modulator – Sends data using ultra-low-power methods (backscatter or low-energy transmission).

4.3 Backscatter Communication: Efficient Data Transmission

One of the most important techniques enabling infinite-life operation is backscatter communication.

🔄 How It Works:

Instead of generating a new signal (which consumes lots of power), the tag reflects and modulates existing RF signals from the environment — usually from nearby Wi-Fi or RFID readers.

The tag essentially acts like a mirror that encodes data by changing how it reflects signals, using techniques like:

Impedance modulation

Load switching

Phase shifting

This allows the tag to “speak” to readers without ever turning on a traditional radio transmitter.

⚡ Why It’s Powerful:

Power consumption is reduced by ~1000x compared to active radios.

Enables tags to transmit IDs or alerts using only harvested energy.

Longer range than passive RFID, depending on environment and RF density.

💬 “Backscatter is the cornerstone of ambient-RF security tags. It lets them talk without talking.”
— Dr. Sanjay Ramesh, MIT Auto-ID Lab

4.4 Power Budgeting and Duty Cycling

RF energy availability varies widely — both over time and in different locations. This means tags must be intelligent about when and how they operate.

⏲️ Duty Cycling Strategy:

Tags spend most of their time in sleep mode (consuming <1 µW).

They periodically wake up, use a small burst of stored energy to:

Check for tamper events

Communicate identity via backscatter

Log environment data (if applicable)

After the task, they go back to deep sleep to conserve energy.

⚡ Energy Use Example (per cycle):

Operation Estimated Energy (µJ)
Wake-up & sensing 2 µJ
Secure ID computation 5 µJ
Backscatter transmission 10 µJ
Total per cycle ~17 µJ

🔋 With ambient RF providing 10–100 µW/cm², a small capacitor can accumulate enough energy for a full cycle every few seconds, even in a low-RF environment.

4.5 Real-World Constraints and Environmental Factors

Even with good design, performance depends heavily on RF density in the environment.

🌍 Key Environmental Variables:

Factor Impact
Signal Source Density More Wi-Fi/cellular transmitters = more ambient RF to harvest
Obstructions Walls, metal shelves, or packaging can attenuate signals significantly
Tag Orientation Antenna alignment affects efficiency
Distance from sources Harvested power drops with the square of distance

🛡️ Security Considerations:

Since tags broadcast information, they must use secure protocols to prevent cloning or eavesdropping.

Energy-harvesting tags may implement lightweight cryptography (e.g., SHA-1, PRESENT, or elliptic curve operations optimized for low power).

Some designs include tamper sensors that trigger a secure alert or disable the tag if it’s removed improperly.

🧠 Did You Know? Researchers at the University of Washington developed a prototype that harvests enough ambient energy to send an encrypted ID signal every 5 seconds, even in low-signal environments like retail stores.

✅ Summary: Making Infinite-Life Security Tags a Reality

To create a functional, reliable, and affordable infinite-life security tag, engineers must balance:

Power efficiency

Communication strategy (like backscatter)

Secure, compact design

Environmental adaptability

The success of ambient RF energy harvesting in this context depends not only on hardware — but on intelligent system design that matches energy input with tag activity.

5. Performance Metrics & Evaluation of Infinite-Life Security Tags

Implementing ambient RF energy harvesting into security tags isn’t just about making them work — it’s about making them work reliably, efficiently, and securely over long periods in varied environments. In this section, we’ll examine the key performance metrics, what benchmarks are used to evaluate success, and compare the performance of energy-harvesting tags to traditional alternatives.

5.1 Key Performance Metrics for RF Energy Harvesting Tags

To evaluate whether a security tag can be truly “infinite-life,” engineers and designers look at several critical performance metrics:

🔋 1. Harvesting Efficiency (%):

Ratio of usable DC power extracted to the RF energy received.

Varies based on signal frequency, rectifier design, antenna tuning.

Typical range: 10–60%.

🔁 2. Duty Cycle / Wake-Up Rate:

How often the tag can wake, perform tasks, and go back to sleep.

Depends on how much ambient energy is available and how energy is managed.

Benchmarks range from every 2–30 seconds in real-world deployments.

🛰️ 3. Communication Range:

How far the tag can communicate using backscatter or low-energy RF.

Influenced by antenna size, power budget, and reader sensitivity.

Typical backscatter ranges: 5–15 meters indoors.

🔐 4. Security Capability (Crypto + Tamper Detection):

Ability to execute secure operations (ID obfuscation, cryptographic authentication).

Ability to detect tampering or unauthorized removal.

Often limited by energy availability.

🛠️ 5. Operational Lifetime:

How long the tag can operate without maintenance or power input.

Infinite-life tags are expected to last 5–10+ years, limited only by physical wear, not power constraints.

5.2 Real-World Benchmarks from Research & Prototypes

Let’s look at data from some recent prototypes and published studies in ambient RF-powered security tagging.

📊 Performance Comparison Table:

System / Study Wake Rate Backscatter Range Security Energy Source
University of Washington (2023) Every 5–10 sec ~6 meters Lightweight crypto Wi-Fi + LTE ambient RF
MIT Auto-ID Lab (2022) Every 3 sec ~10 meters Secure ID hashing UHF RFID & Wi-Fi
KAIST Ambient IoT Tag (2024) Every 15 sec 12 meters (indoor) Tamper detection Multi-band RF harvesting
Commercial Passive RFID (baseline) On-demand 1–2 meters (reader proximity) No onboard crypto Reader-powered
Active RFID Tag (battery-powered) Every 1 sec 30+ meters Full encryption Internal battery (1–2 yrs)

💡 Insight: While active tags perform better in range and frequency, energy-harvesting tags match or exceed passive RFID with zero maintenance cost and indefinite life expectancy.

5.3 Key Factors That Influence Performance

📶 1. RF Signal Density

More RF sources = more frequent wakeups.

Urban areas, offices, and retail stores are ideal harvesting zones.

📐 2. Antenna Design

Directional antennas improve capture in known signal paths.

Multi-band antennas capture 2.4 GHz (Wi-Fi), 900 MHz (RFID), and 5 GHz together.

🔄 3. Energy Storage Capacity

Supercapacitors vs. thin-film batteries determine how much power can be stored and buffered.

Larger storage = longer operational cycles but may increase tag size.

🧠 4. Processing Complexity

More secure or complex tasks (e.g., ECC crypto) require more power.

Systems often schedule tasks to balance energy budget and feature needs.

5.4 Trade-Offs in Real Deployments

Deploying energy-harvesting tags at scale involves navigating several trade-offs:

Trade-Off Explanation
Size vs. Harvesting Power Larger antennas harvest more energy, but reduce tag compactness.
Functionality vs. Lifetime Higher-feature tags consume more energy, reducing activity frequency.
Cost vs. Customization Custom ASICs improve efficiency but increase R&D and manufacturing cost.
Range vs. Simplicity Longer communication ranges may require more complex modulation, impacting energy use.

📎 Case Study: Ambient RF Tags in a Real Retail Environment

In 2024, a pilot deployment by a European retail chain tested 1,000 ambient-RF-powered security tags in a midsize store with multiple Wi-Fi routers and 4G LTE coverage.

🧾 Key Outcomes:

Average wake interval: 4.8 seconds

Tag size: 4.5 cm × 2.5 cm (credit card)

Cost per unit: $0.88

Power source: Wi-Fi (2.4 GHz) + cellular (900 MHz)

Detection accuracy: 98.3% on attempted tag removal

Battery replacements required: 0

🗣️ “Ambient RF tags provided maintenance-free coverage for the entire store — saving an estimated €12,000 per year in labor and battery costs.”
— Operations Manager, Retail Pilot Study

✅ Summary: Ambient RF Tags Deliver Competitive Performance

Modern ambient RF-powered security tags are already showing real-world viability, particularly in indoor environments with good signal availability. While they don’t yet match active tags in range, they offer a revolutionary leap over passive RFID:

No need for reader proximity

Continuous operation with no battery

Secure, tamper-resistant identification

Scalable deployment at low cost

With ongoing improvements in RF harvesting circuits and ultra-low-power chip design, performance will only improve from here.
